How do I install my Automatic Vehicle Identification (AVI) transmitter?

This article discusses how to install an Automatic Vehicle Identification (AVI) transmitter.

The Diablo Controls AVI-X transmitter is part of an Automatic Vehicle Identification (AVI) system. This device transmits a coded signal that can be received by an AVI receiver that is configured to receive the transmitter’s code.

The AVI-X can optionally be installed with a Diablo Controls AVI-SD security device. This device makes the AVI-X transmitter inoperable if removed from the vehicle. See the AVI-SD installation instructions for the correct wiring instructions when the security device is used.

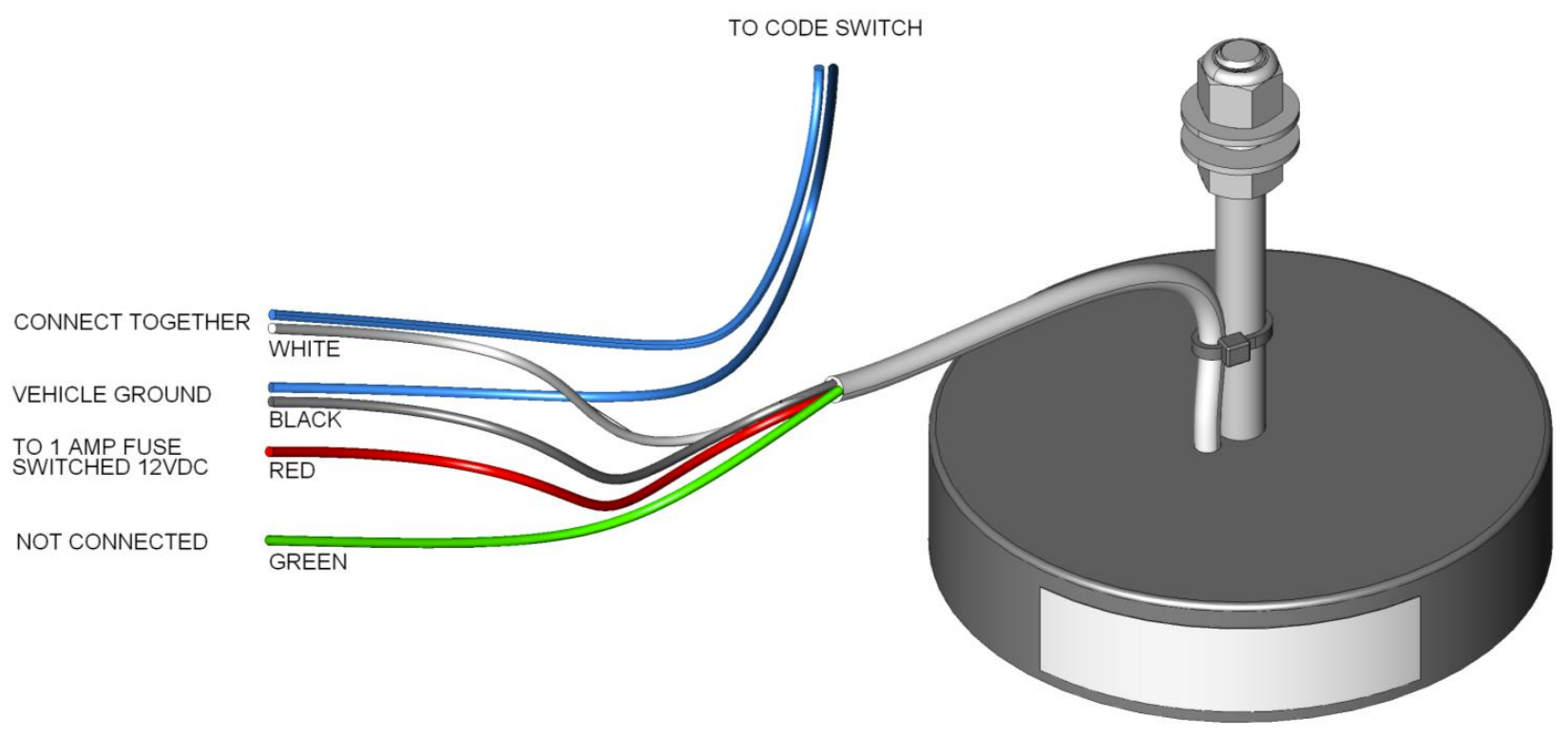

The AVI-X requires a 12 VDC connection fused at 1 A and a vehicle ground connection. The 12 VDC power should be a power source that is switched on and off with the vehicle key or the emergency lights, if so equipped. An optional alternate code switch can be installed for transmitters that support its use.

For full installation procedure, please refer to our instructions here.
