DSP‑21 & 20 Wiring Guide: SKT-11 11-pin socket

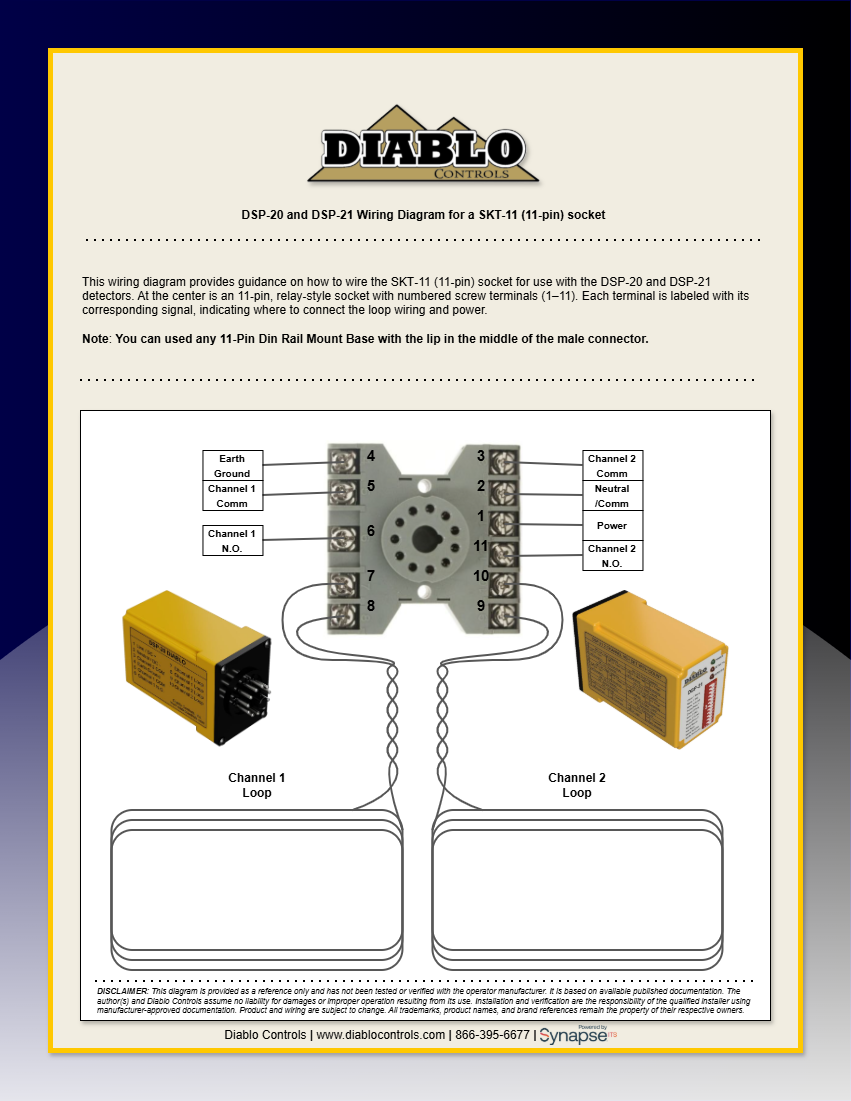

This article provides a wiring diagram to guide the installation of a DSP-21 and DSP-20 loop detector with a SKT-11 socket.
DSP-20 & 21 into a SKT-11

Download here: DSP-20 & 21 into a SKT-11

If you still have any questions, please feel free to contact us.
