XLP-8 Wiring Guide: LiftMaster board K001A6426-2 for Free Exit Probe/Loop

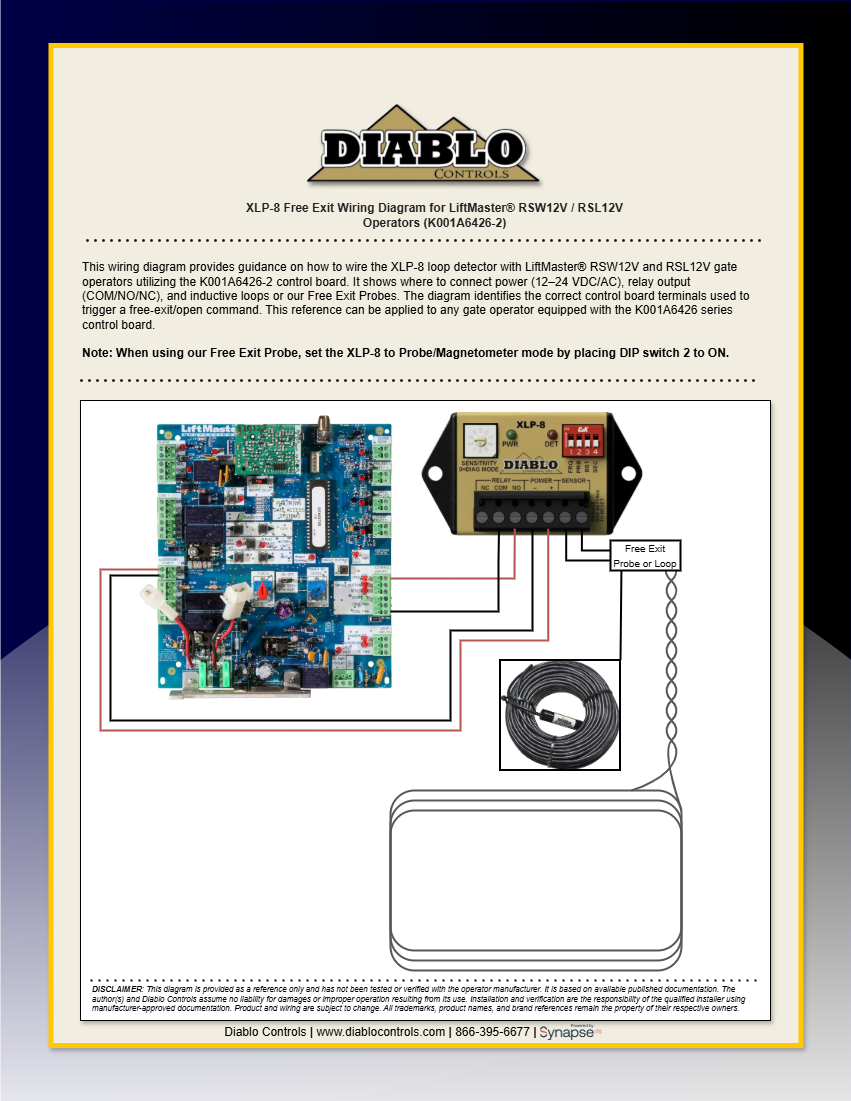

This article provides a wiring diagram to guide the installation of an XLP-8 loop detector with a LiftMaster RSW12V and RSL12V operator, or any operator that uses a K001A6426-2 board.
XL-8 into K001A6426-2

Download here: XLP-8 into K001A6426-2

If you still have any questions, please feel free to contact us.
