XLP-8 Wiring Guide: Apollo board Board 835/836 for Free Exit Probe/Loop and Safety Loops

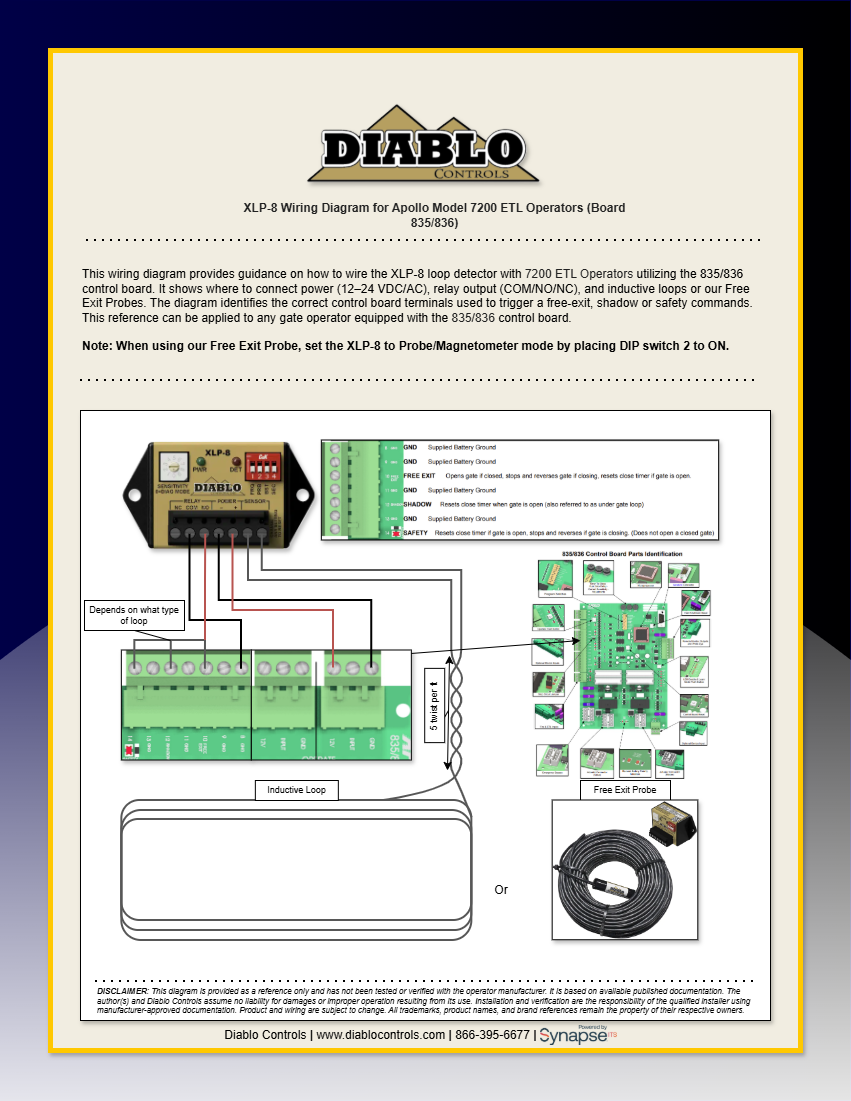

This article provides a wiring diagram to guide the installation of an XLP-8 loop detector with a LiftMaster Model 7200 ETL operator, or any operator that uses an 835/836 board.
XLP-8 into 835/836

Download here: XLP-8 into 835/836
