DSP‑10 Wiring Guide: SKT-11 11-pin socket

This article provides a wiring diagram to guide the installation of a DSP-10 loop detector with a SKT-11 socket.

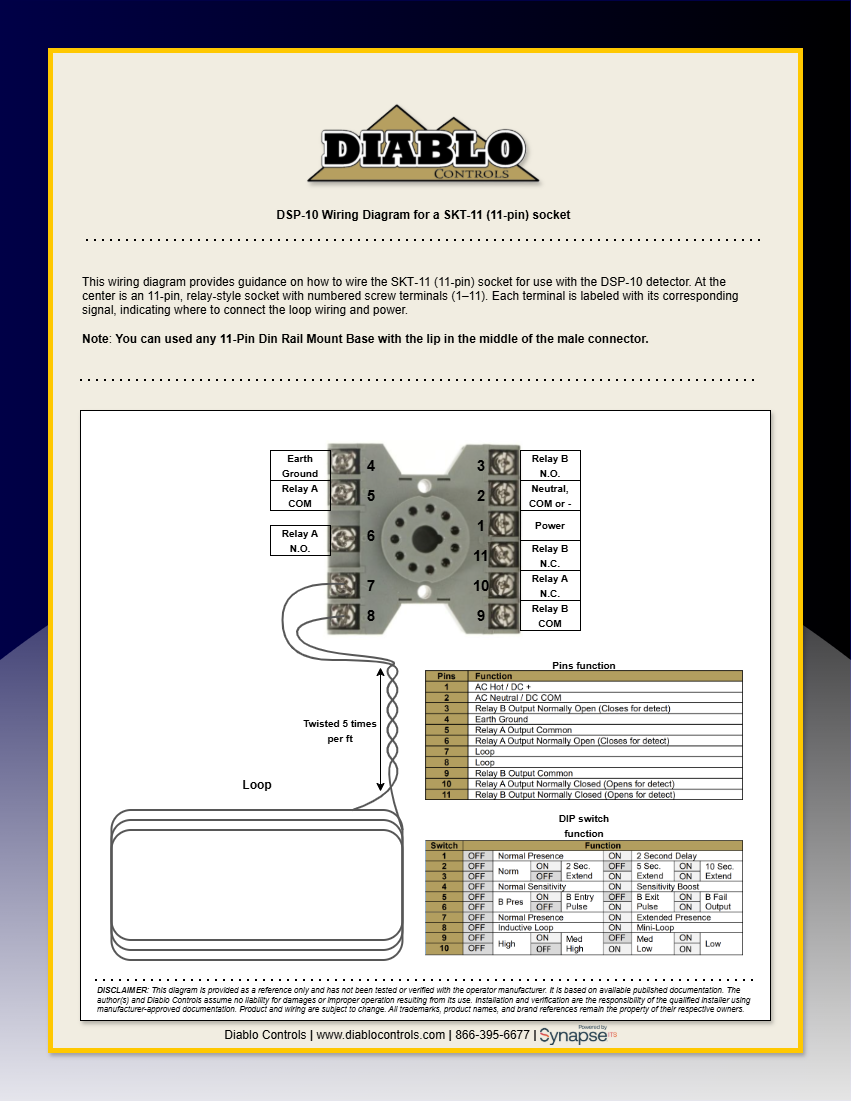

DSP-10 into SKT-11

Download here: DSP-10 into SKT-11

If you still have any questions, please feel free to contact us.
