XLP-8 Wiring Guide: LiftMaster board -1CCMC for Free Exit Probe/Loop and Safety Loops

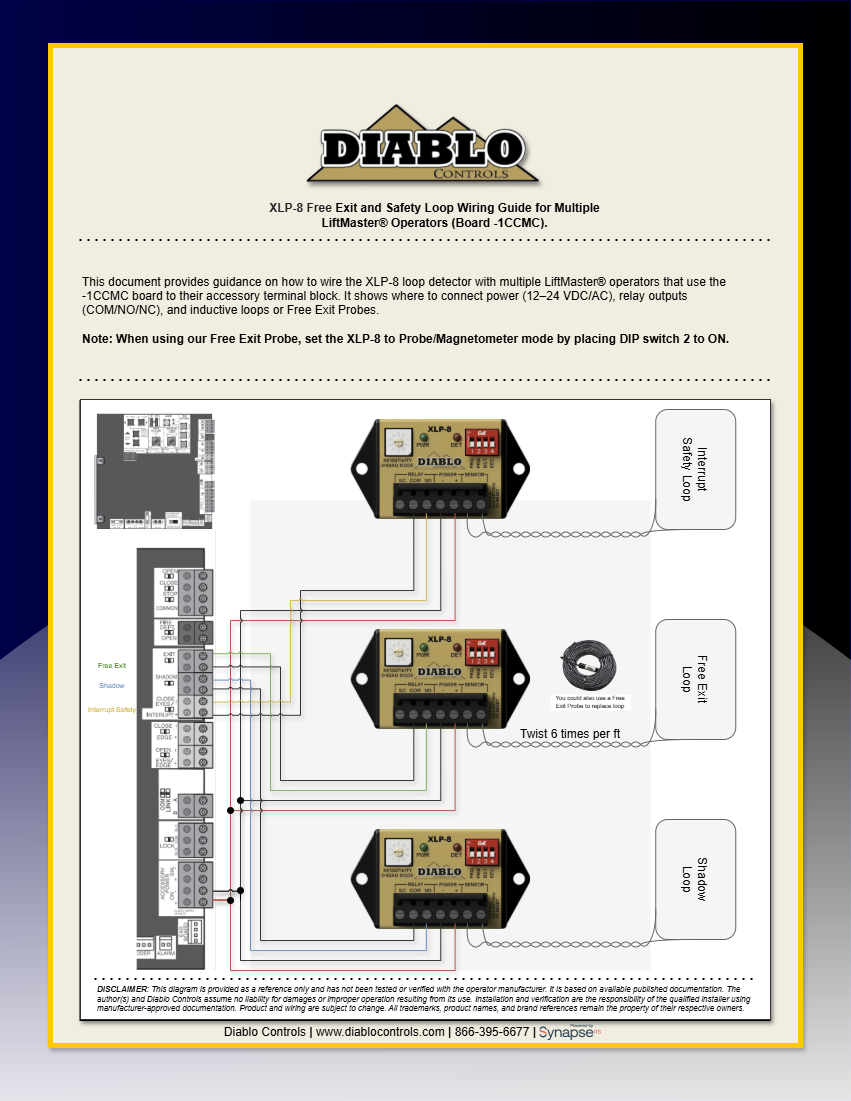

This article provides a wiring diagram to guide the installation of an XLP-8 loop detector with a LiftMaster CSW24 operator, or any operator that uses a -1CCMC and an accessory board.

Download here: https://diablocontrols.com/wp-content/uploads/XLP-8-to-1CCMC.pdf

If you still have any questions, please feel free to contact us.

https://diablocontrols.com/product-support/
